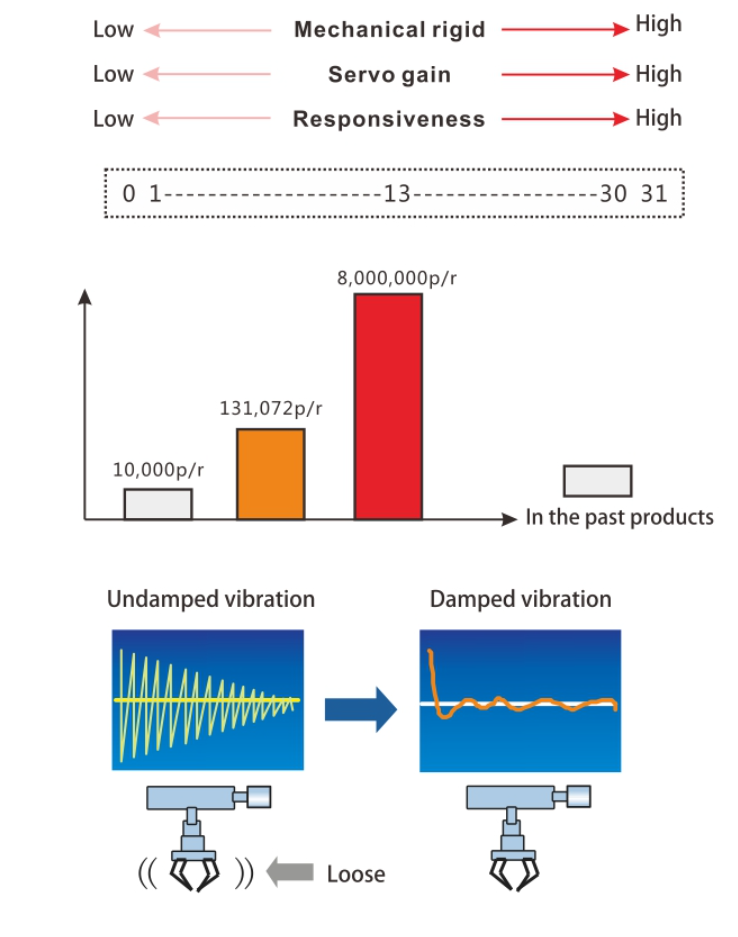

1. It is easier to debug the parameters. Parameters It does not need to set the gain of position ring and speed ring, but only need to set the rigidity real-time automatic gain through the parameter Pr003.
2. Supports up to 23 bit single/multi pen encoders. Position accuracy up to 0.15 arc seconds.
3. Special real-time automatic vibration suppression function can automatically suppress vibration without inputting vibration frequency.

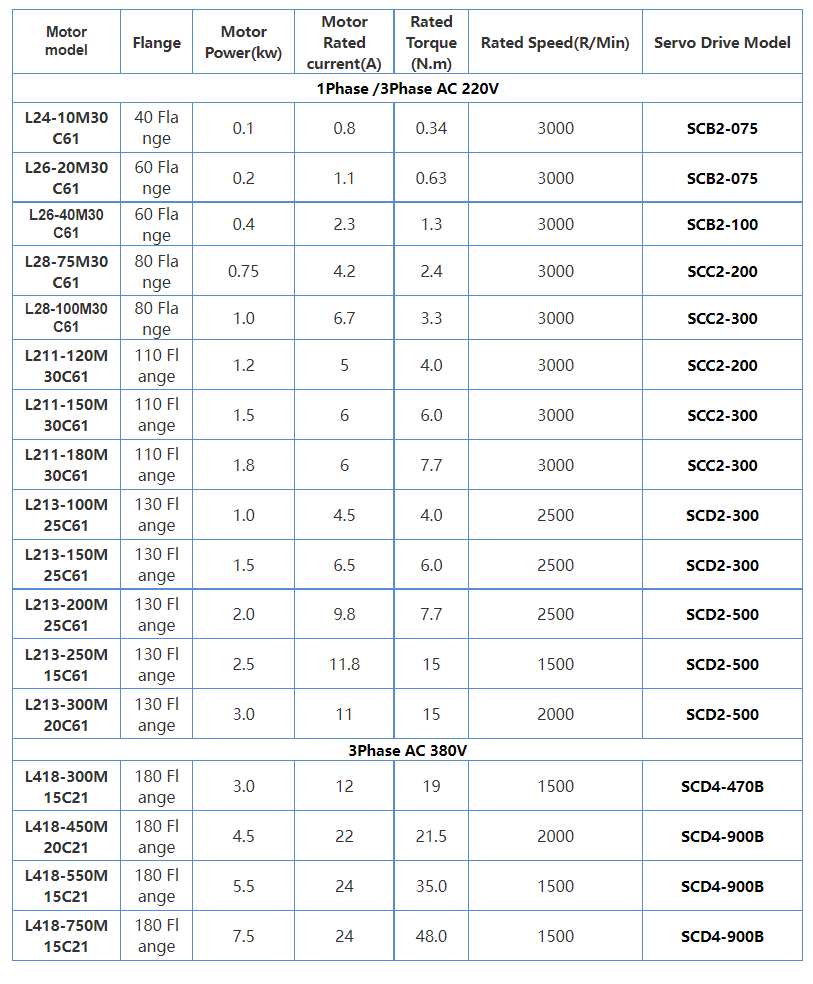

SC SERIES (0.1~7.5KW)
★ The response frequency is up to 1.5Khz, which is especially suitable for applications requiring high-speed response.
★ The drive menu, control interface, parameter modification and write operation are consistent with the Panasonic A5 series servo drive.
★ The drive menu, control interface, parameter modification and write operation are consistent with the Panasonic A5 series servo drive.
