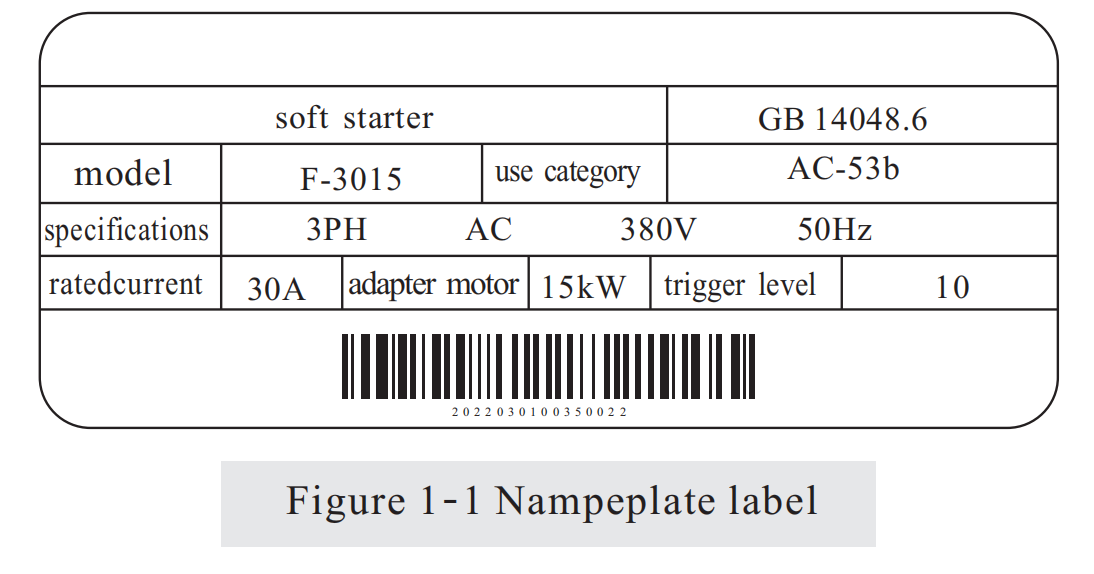

1.1 Product Nameplate
Take series three-phase AC 380V input 15kw soft starter as an example, and its nameplate is shown in the figure.
Specification: 3Ph refers to three-phase input; 380V and 50/60hz indicate input voltage and rated frequency.

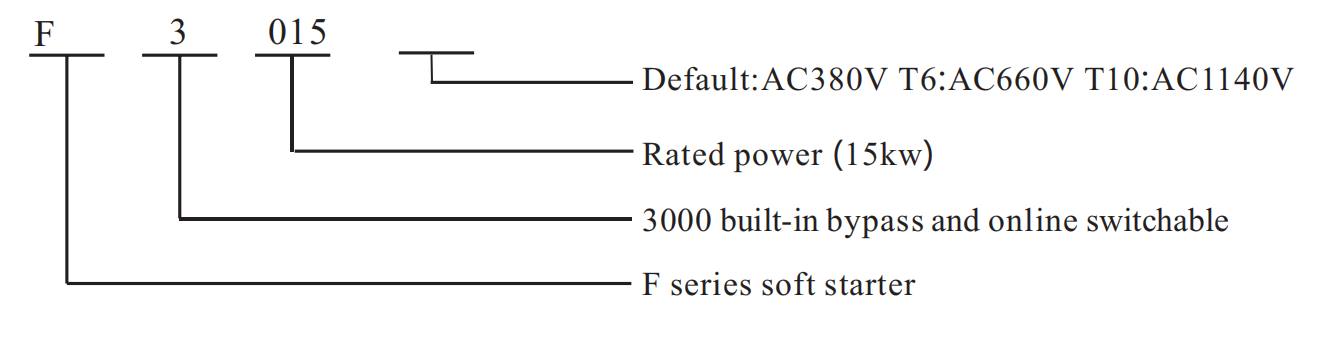

1.2Product model description
Take the three-phase 380V input 15kw soft starter as an example, and its model description is shown in the figure below.

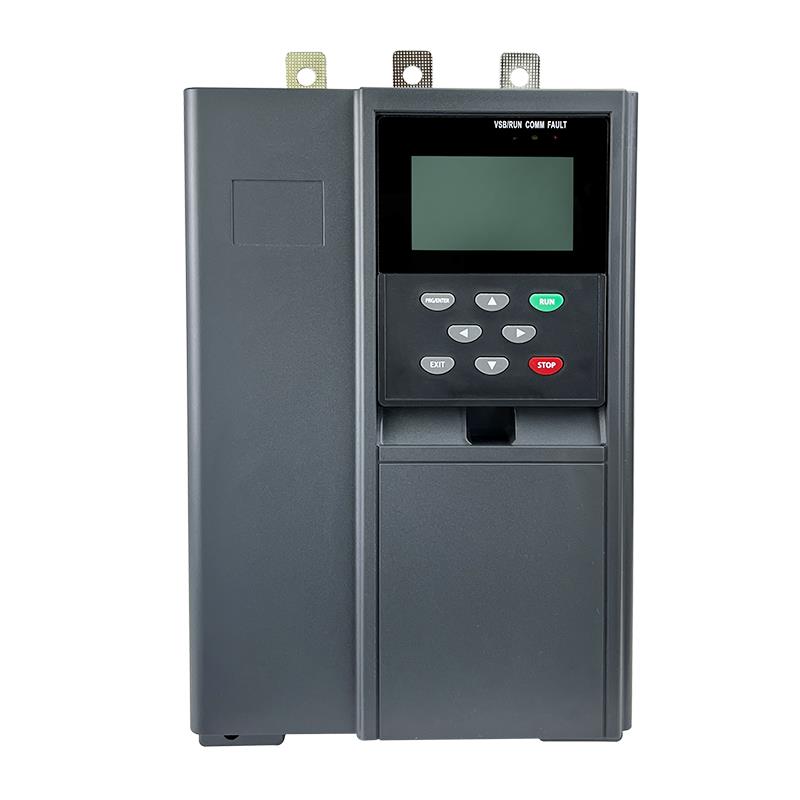

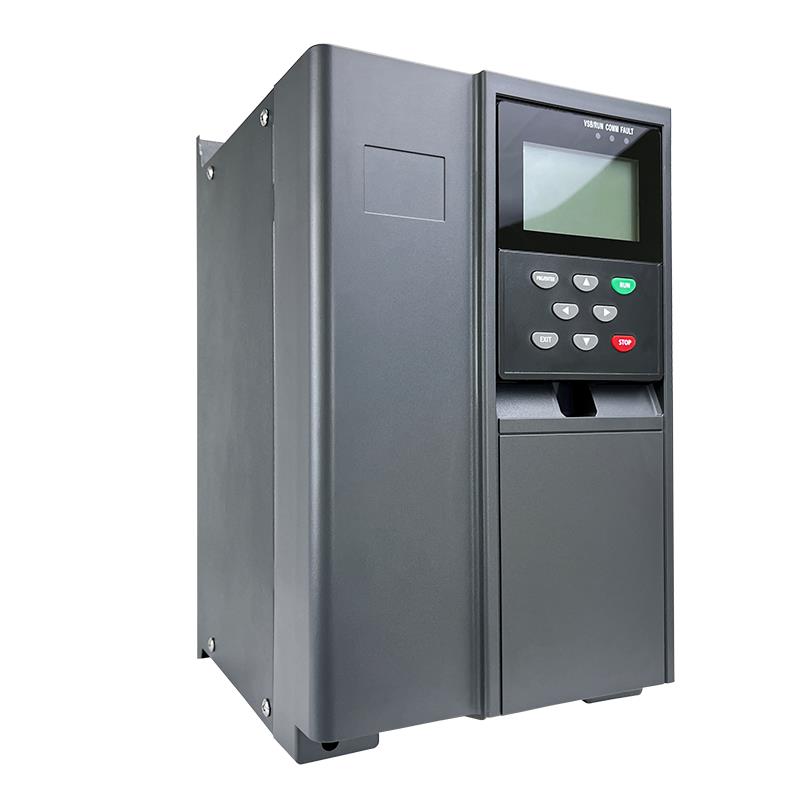

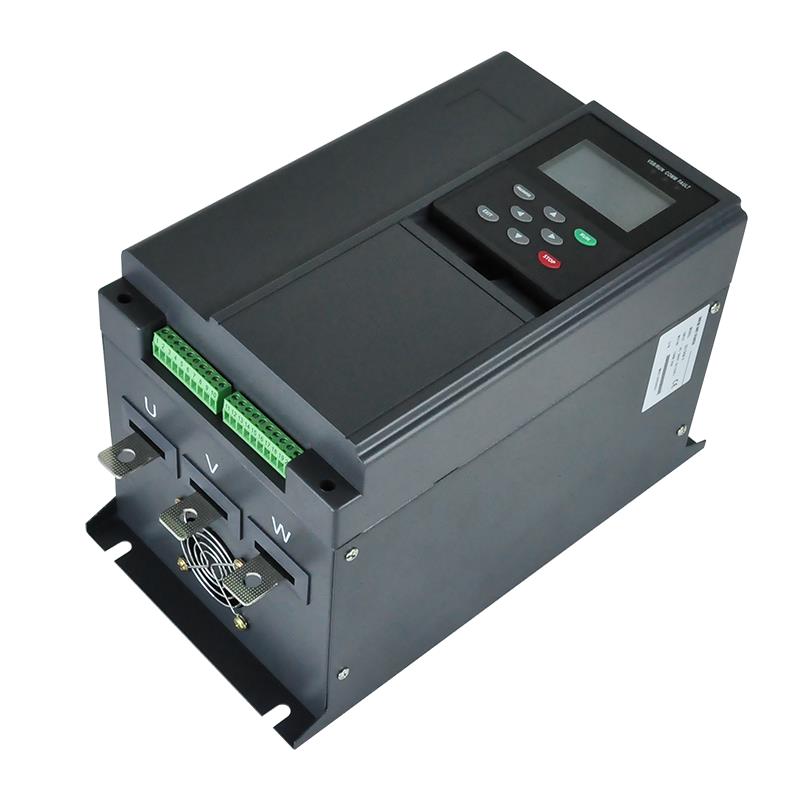

1.3 Product appearance
The main structure of series soft starter shell is a metal shell wall mounting structure.The upper panel and control keyboard are made of plastic shell, and the metal shell adopts advanced surface powder spraying and plastic spraying technology,with exquisite color and beautiful appearance.

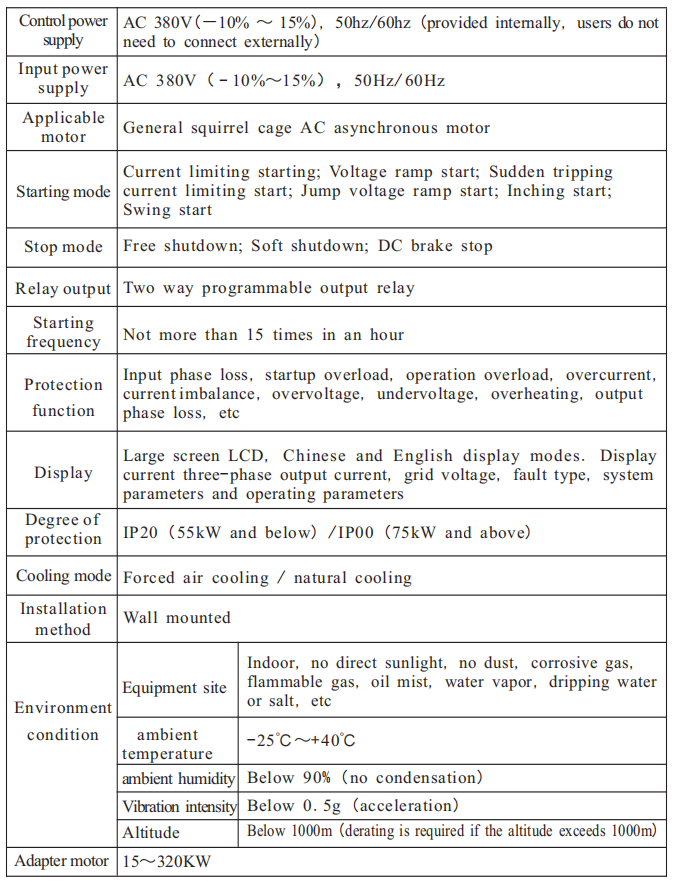

1.4 Technical specifications
F-3000 series soft starter Technical specifications
STR60 SERIES (5.5KW~630KW)
● Built-in bypass contactor to simplify customer external wiring.
● Six starting modes are selected to maximize the beststarting effect of the motor.
● It can realize the forward and reverse stepwise frequency conversion inching
function, and realize the forward and reverse inching operation of the motor.
● Three parking modes can be selected: free parking,soft parking and DC braking
parking.
● Two driving modes can be selected: torque mode and smooth mode.
● Six starting modes are selected to maximize the beststarting effect of the motor.
● It can realize the forward and reverse stepwise frequency conversion inching
function, and realize the forward and reverse inching operation of the motor.
● Three parking modes can be selected: free parking,soft parking and DC braking
parking.
● Two driving modes can be selected: torque mode and smooth mode.
